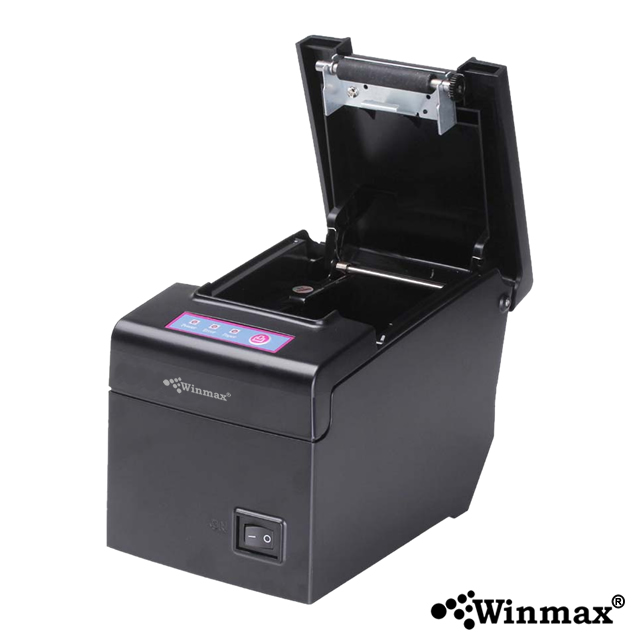

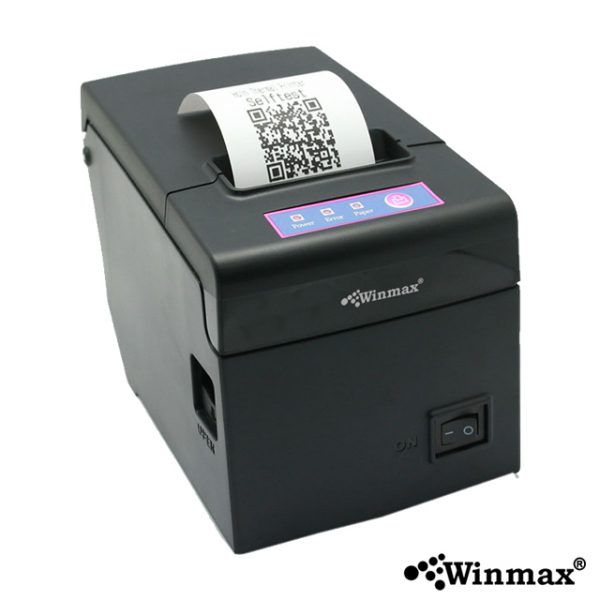

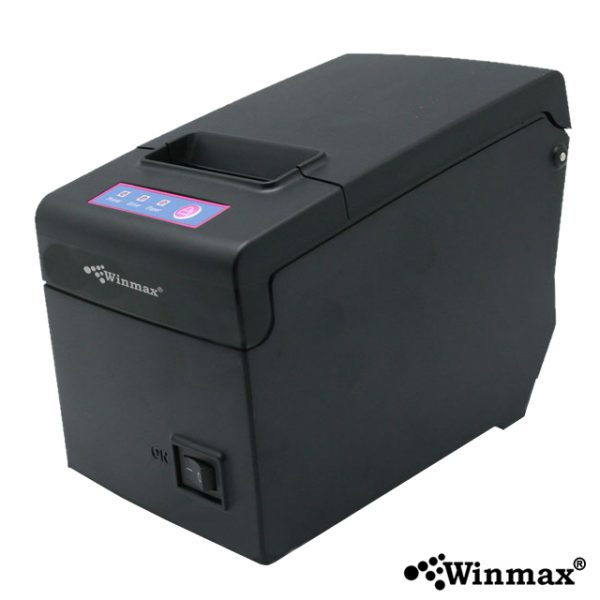

Direct Thermal Printer 58mm Ticket Bill Printer Winmax-E58
เครื่องพิมพ์ใบเสร็จ ปริ้นสลิป ขนาด 58 มม. รองรับ Bluetooth Winmax-E58
Specification
Print parameters
Printing Method : Thermal Line
Printing Method : 48MM
Resolution : 384dots/Line(8dots/mm,203dpi)
Printing Speed : 130mm/Second
Interface Type : USB,COM,Internet(100M),WIFI,Bluetooth
Line Spacing : 3.75 mm(Can adjust line spacing by command)
Line : Font A-32Lines/Font B-42 Lines/Simple/Traditional Chinese-16 Lines
Character : Standard GB18030 simplified / traditional Chinese Fonts
Character Size :
ANKcharacter,Font A:1.5×3.0mm(12×24Dots)
Font B:1.1×2.1mm(9×17Dots) Simplified/Traditional Chinese:3.0×3.0mm(24×24 Dots)
Bar code Character
Extended character set :
PC437/Katakana/PC850/PC860/PC863/PC865/WestEurope/Greek/Hebrew/EastEurope/Iran/WPC1252/PC866/PC852/PC858/IranII/Latvian/Arabic/PT151,1251/PC737/WPC/1257/ThaiVietnam/PC864/PC1001/(Latvian)/(PC1001)/(PT151,1251)/(WPC1257)/(PC864)/(Vietnam)/(Thai)
Bar code :
1D bar code:UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)CODE39/ITF/
CODABAR/CODE93/CODE128
2D bar code:QRCODE
Graphics printing
Graphics printing : Supports bitmap download and print
Paper
Type : Thermal Paper
Width : 57.5±0.5mm
Diameter : ≤83mm
Feed Method : Easy feed(Clameshell feed)
Print commands
Commands : ESC/POS
Power
Power Adaptor :
Input:AC 110V/220V,50~60Hz
Output:DC 12V/2A
Casher Drawer output : DC 12V/1A
Buffer
Input Buffer : 4K
NV Flash : 40K
Physical characteristics
Weight : 0.75kgs
Dimension : 180*115*127mm
Environment
Working : Temp:5 ~ 45℃, Humidity:10 ~ 80%
Storage : Temp:-10 ~ 50℃ ,Humidity:10 ~ 90%(No dew)
Reliability parameter
Print Head Life : 100KM(print density≤12.5)
Cutter Life : 1000,000times
