Specification
Model : GLASSII-B
Fingerprint Sensor : Subminiature optical fingerprint scanner
Screen : 1.77-inch TFT Screen,0-9 ten digits keypad,intuitive and simple to operate
Fingerprint capacity : 2000
RFID card capacity : 1000
Password capacity : 1000
Record capacity : 100,000

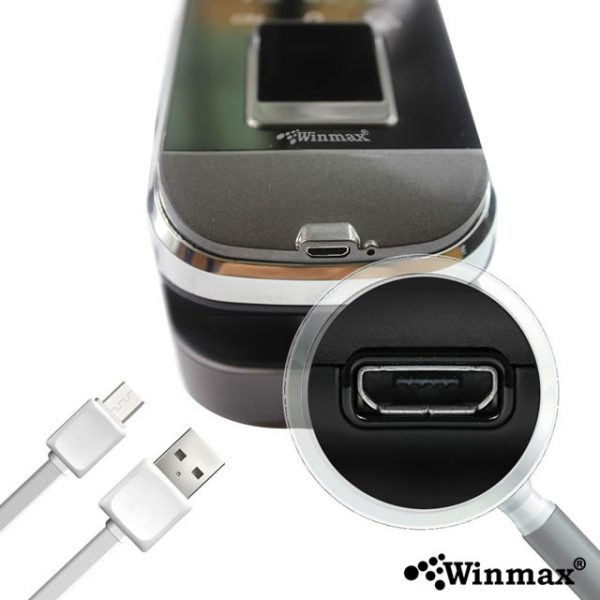

Communication : Micro USB,Support Self-Service report in excel format.
Standard Function : ID Card,Password & Fingerprint,Adjust bolt can keep the lock opening.
Voice Prompt : Buzzer&Doorbell

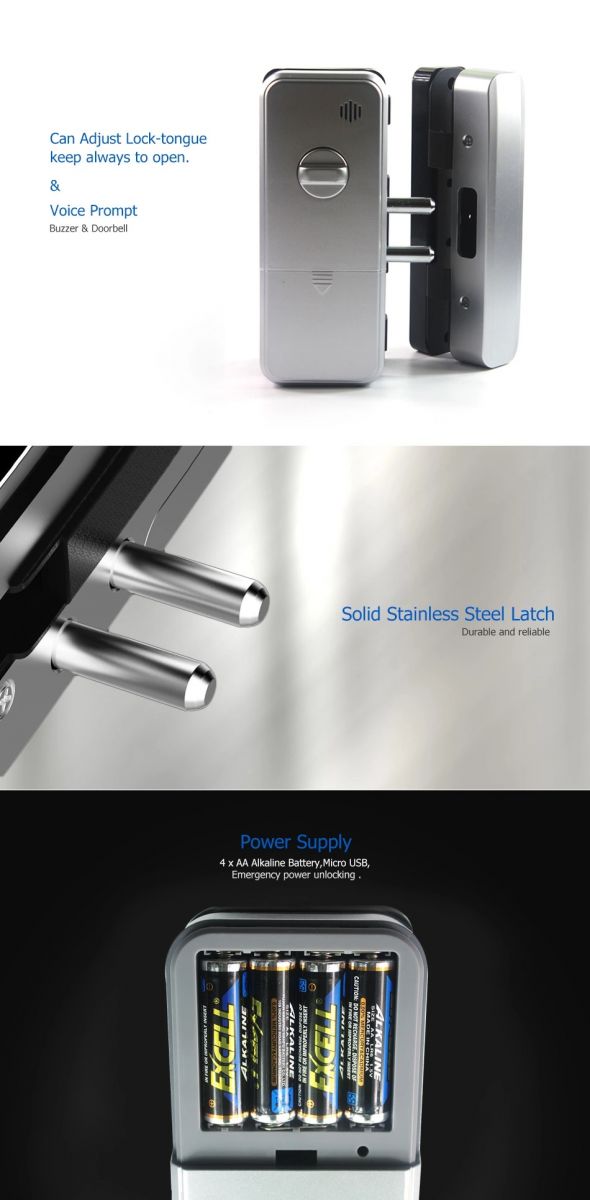

Power Supply : 4 x AA Alkaline Battery,Micro USB, Emergency power unlocking .
Optional double-open glass door dedicated plug, single door lock clip, frameless door special fixture,gold, silver, remote control function, mobile APP function
Alarm : Low battery alarm and the door automatically unlocks when the power of batteries is below 10%.
Operating Temperature : Minus 20°C ~ 50°C

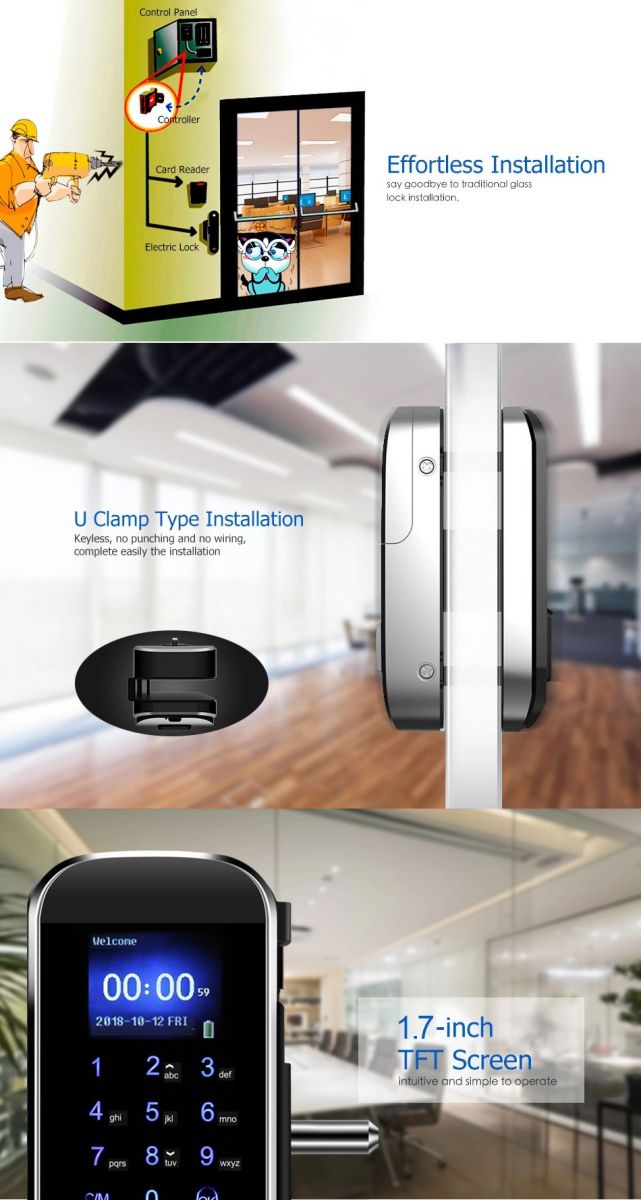

Applications for : double frameless glass doors, single frameless glass doors and framed glass doors (with different accessories)

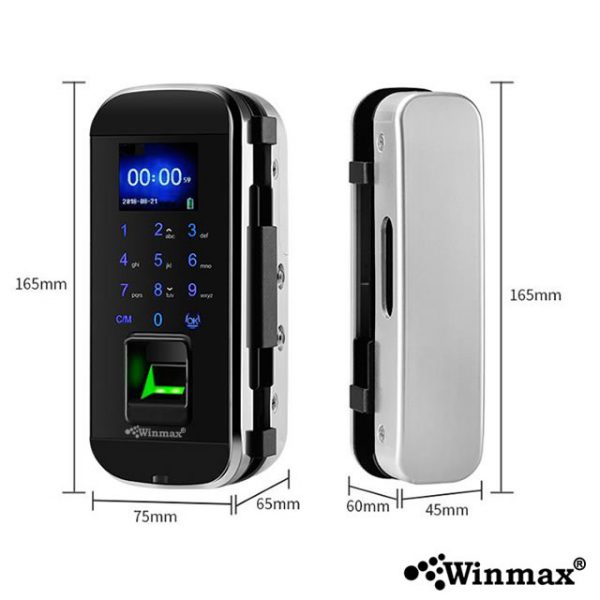

Dimension(L x W x H) : Lock:70x76x168mm Double door lock clip:45x58x168mm
รายละเอียดล็อกประตูกระจกดิจิตอล
ล็อคประตูกระจก ด้วยรหัสผ่าน ลายนิ้วมือ สมาร์ทการ์ด
รุ่น : GLASSII-B
เซ็นเซอร์ลายนิ้วมือ : เครื่องสแกนลายนิ้วมือแบบออปติคอล
ล็อคประตูกระจกหน้าจอ : 1.77 นิ้ว, ปุ่มกด 0-9 ใช้งานง่าย
ความจุลายนิ้วมือ : 2,000
ความจุบัตร RFID : 1,000
ความจุรหัสผ่าน : 1,000
ความจุบันทึก : 100,000
การเชื่อมต่อสื่อสาร : Micro USB
ฟังก์ชั่นมาตรฐาน : ID Card, รหัสผ่าน และลายนิ้วมือ
เสียงเตือน : มี
แหล่งจ่ายไฟ : ถ่านขนาด AA จำนวน 4 ก้อน, Micro USB
การเตือน : เตือนแบตเตอรี่ต่ํา, เตือนเปิดประตู, เตือนปลดล็อคอัตโนมัติเมื่อแบตเตอรี่ต่ำกว่า 10%
การใช้งานสําหรับ: ประตูกระจกบานคู่, ประตูกระจกบานเดียว
ขนาด (ยาว x กว้าง x สูง) : ล็อค: 70x76x168mm คลิปล็อคประตูคู่:45x58x168mm
