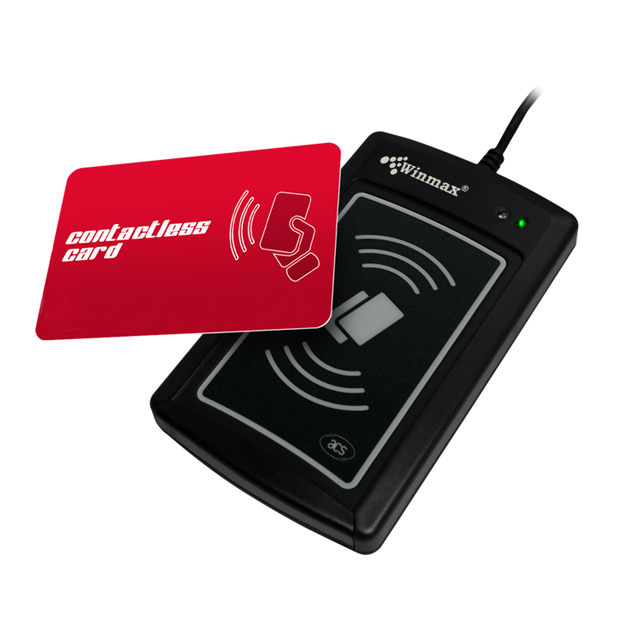

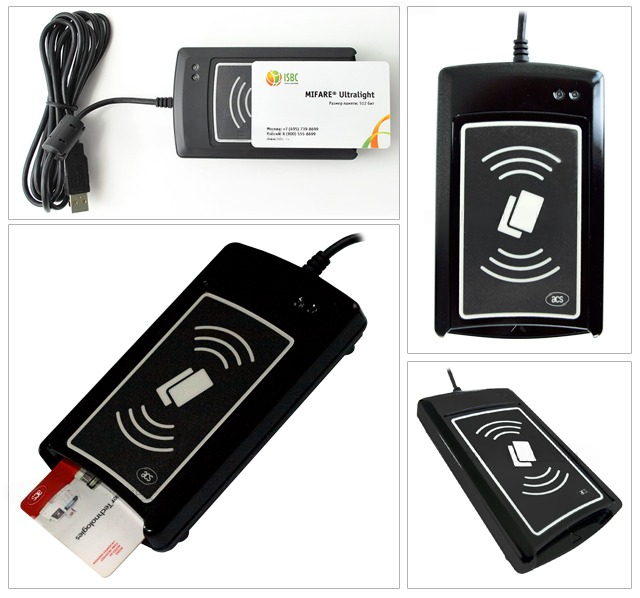

USB Dual face smart card reader/Writer ACR1281U
2in1 เครื่องอ่านเขียนบัตรประชาชน Smart Card พร้อมเครื่องอ่านเขียน บัตร RFID Mifare 13.56MHz ACR1281U
Overview:
ACR1281U-C1 DualBoost II is the second generation of ACS's ACR128 DualBoost Reader. It is a dual interface reader that can access any contact and contactless smart cards following the ISO 7816 and ISO 14443 standards. ACR1281U-C1 DualBoost II enables one to integrate conventionally separate and independent applications for contact and contactless technologies into one device and one card; it can be used for online transactions to settle payments securely using credit cards, and it can also be used for topping up contactless cards via automated fare collection in public transport. It provides the perfect complement to the "All-in-one Card" concept that combines many kinds of smart card applications in just a single card.
Fetures:
-
USB 2.0 Full Speed Interface
-
CCID Compliance
-
Contactless Smart Card Reader:
-
Read/write speed of up to 848 kbps
-
Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
-
Supports ISO 14443 Part 4 Type A and B cards and Mifare series
-
Built-in anti-collision feature (only one tag is accessed at any time)
-
Supports extended APDU (max. 64 kbytes)
-

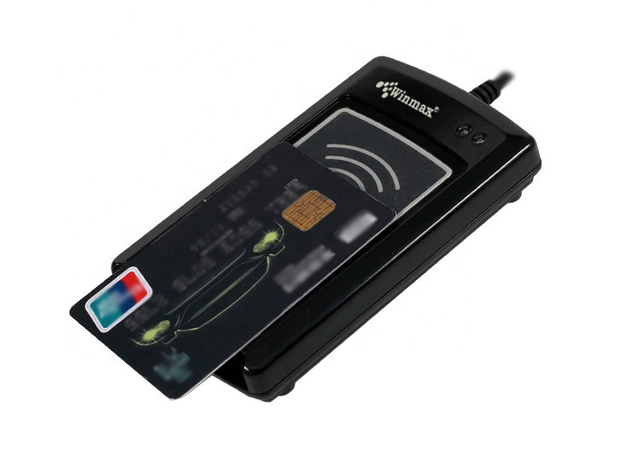

Contact Smart Card Reader:
-
Supports ISO 7816 Class A, B and C (5 V, 3V and 1.8 V)
-
Supports microprocessor cards with T=0 or T=1 protocol
-
Supports memory cards
-
ISO 7816 compliant SAM slot
-
Application Programming Interface:
-
Supports PC/SC
-
Supports CT-API (through wrapper on top of PC/SC)
-
Built-in Peripherals:
-
Two user-controllable LEDs
-
User-controllable buzzer
-
USB Firmware Upgradability
คุณสมบัติของเครื่องอ่านบัตร:
- เครื่องอ่านบัตร รองรับการเชื่อมต่อ USB 2.0 ความเร็วเต็ม
- การปฏิบัติตามมาตรฐาน CCID
- เครื่องอ่านบัตร Smart ไร้สัมผัส
- การอ่าน / เขียนความเร็วสูงสุดถึง 848 กิโลบิตต่อวินาที
- Built-in เสาอากาศสำหรับการเข้าถึงแท็กสัมผัสกับการ์ดระยะของการอ่านสูงสุดถึง 50 มม. (ขึ้นอยู่กับประเภทแท็ก)
- เครื่องอ่านบัตรรองรับมาตรฐาน ISO 14443 ส่วนที่ 4 ประเภทบัตร A และ B และชุด Mifare
- Built-in คุณสมบัติป้องกันการชนกัน (เพียงหนึ่งแท็กที่มีการเข้าถึงได้ตลอดเวลา)
- เครื่องอ่านบัตรรองรับการขยาย APDU (สูงสุด 64 kbytes)
- เครื่องเขียนบัตรรองรับมาตรฐาน ISO 7816 Class A, B และ C (5 V, 3V และ 1.8 V)
- เครื่องอ่านบัตรรองรับการ์ด T = 0 หรือ T = 1 โปรโตคอล
- เครื่องเขียนบัตรรองรับการ์ดหน่วยความจำ
- เครื่องอ่านบัตรรองรับ PC / SC
- เครื่องอ่านบัตรรองรับ CT-API (ผ่านการห่อหุ้มอยู่ด้านบนของ PC / SC)
- เครื่องอ่านบัตรพร้อมอุปกรณ์ต่อพ่วงในตัว
- เครื่องอ่านบัตรมีไฟ LED แสดงการทำงาน
- สัญญาณแสดงการทำงาน
Tech Specs:
Dimensions 120.5 mm (L) x 72.0 mm (W) x 20.4 mm (H)
Weight 150 g
Interface USB Full Speed
Operating Distance Up to 50 mm (depends on the tag type)
Supply Voltage Regulated 5V DC
Supply Current 200mA (operating); 50mA (standby)
Operating Temperature 0-50' C
Operating Frequency 13.56 MHz
Contact ISO 7816 Class A, B and C (5V, 3V, 1.8V)
Smart Card Interface Support Contactless
ISO 14443 Type A & B
Mifare
ISO 14443, ISO 7816, CE, FCC, PC/SC, CCID, CE, FCC, RoHS, USB Full
Compliance/Certifications Speed
Microsoft WHQL: 2000, XP, Vista, 7, 8, Server 2012, Win 2000, Win 2003, Win 2003 R2, Win XP, Win Vista, Win 2008, Win 7, Win 8
Win 2003 x64, Win 2003 R2 x64, Win XP x64, Win Vista x64, Win 2008 x64, Win 2008 R2 x64, Win 7 x64, Win 8 x 64, Win 2012 x64
Operating System Support Mac
Linux
Android 3.1 and above
* Warranty 3 month
