Specification :
Method : Direct Thermal line
Resolution : 203dpi
Speed : 150mm/s

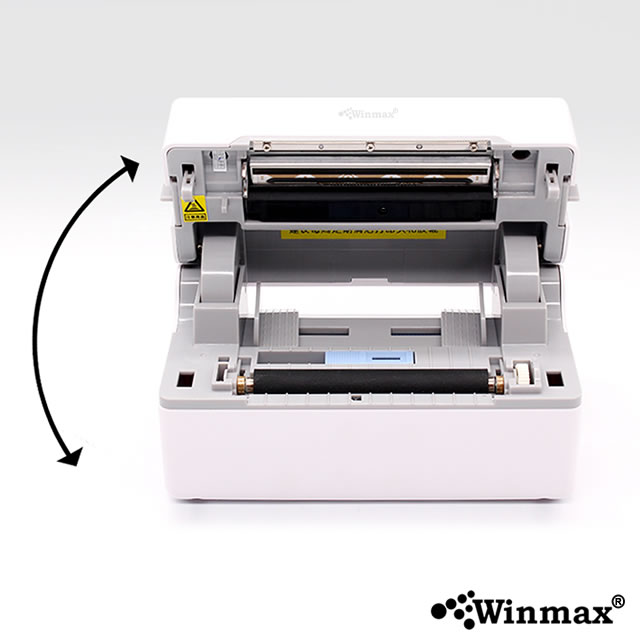

Paper loading method : Easy paper loading / auto paper feeding
Interface : USB (Optional : USB+Bluetooth)
Type : Folded paper or roll paper, die-cut label

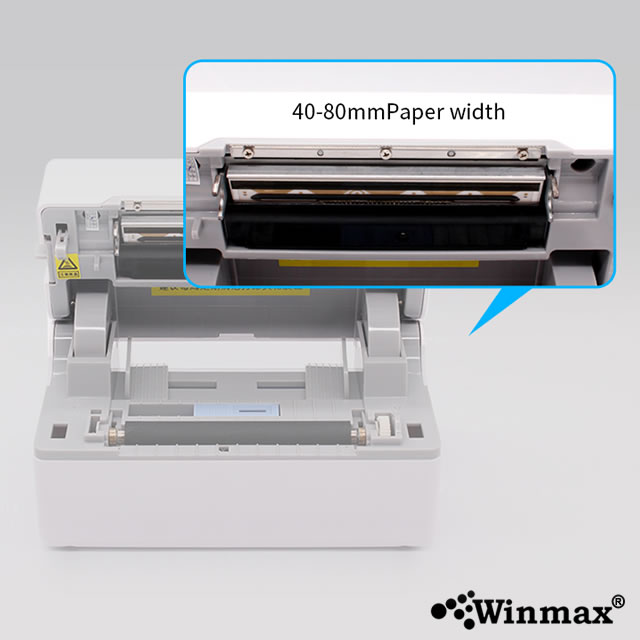

Width : 40~80mm
Thickness : 0.058~0.17mm
Power Adapter : DC 24V = 2.5A
Print font :
ASCII Font A:12*24
ASCII Font B : 9*17
Chinese character 24*24
ASCII character set : 12*24dot,1.25(width)*3.00(height)mm
National standard ClassI and II Chinese Character Font : 24*24dot, 3.00 (width)*3.00 (height)mm
1D Barcodes : Code 39 ,39C ,I25,Code 93,ITF25 ,EAN128 ,Code 128 , Codabar , EAN -8 ,EAN8 +2 ,EAN8+ 5, EAN -13 ,EAN13+ 2,EAN13 +5, UPC-A ,UPCA+2 ,UPCA+5, UPC-E ,UPCE +2 ,UPCE+ 5M SIC ,ITF14 , EAN14 ,CODE11 , POST
2D Barcodes : QR Code, PDF417 (Optional)
Extended character : PC437,Katakana,PC850,PC86 0,PC863 ,PC865 ,WPC1252 , PC866 ,PC852 , PC858
Character Printing : It supports double width and double height printing of ANK characters, custom characters and Chinese characters; adjusts dot patterns of character spacing for printing
Working Environment : Operating temperature: 5~45°C, Operating humidity:20~85%
Storage Environment : Storage temperature:-10~60°C, Storage humidity:10~90%( Except paper rolls)
Label Design : Customer can download third-party editing software for label design
Driver : XP/WIN 7, WIN8, WIN10
Standard : TSPL
Optional : CPCL/ ZPL

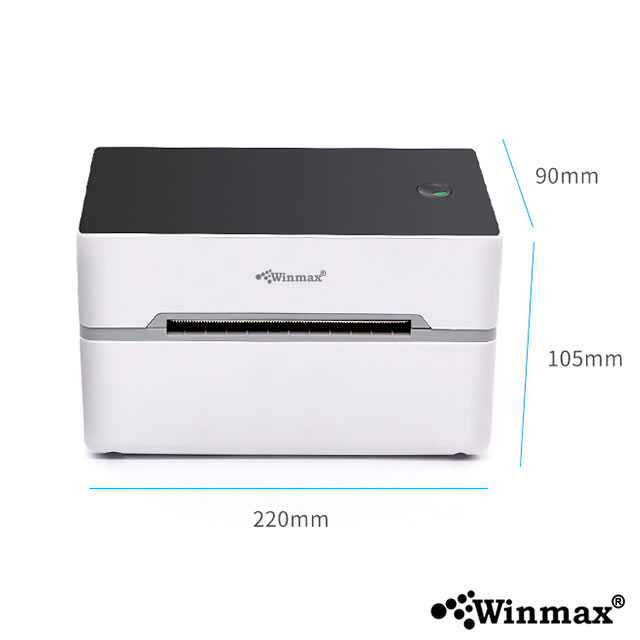

Dimension : 220mm*105mm*90mm(L*W*H)
Weight : 1.18kg
Warranty 1 Month
