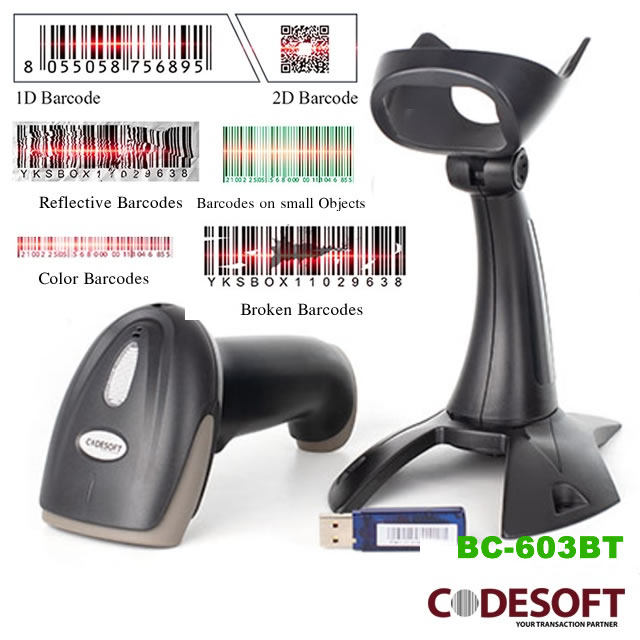

1D: UPC-A, UPC-E, EAN-8, EAN-13,Code 39,Code 128,Interleaved 2 of 5, Codabar, Code93
2D: PDF417, MicroPDF417, Data Matrix,QR Code,Micro QR, Aztec
Specifications
Communications : 433
Communication frequency : 433 to 440MHz
Transmission range : ≤50M（In empty area 50M ）
Data rate : 10kbps
Memory : 100，000@13Byte barcode
Battery capacity : 1500mAh (Lithium battery)
Charging time : 5 hours
The life time of the full charge :
- 6h（continuous reading situation）
- 12h（Manual reading situation）
- More than 15 days（Stand-by time)
Communication mode : Read-time mode/Inventory mode／Cache mode
Electrical Characteristics
Interface : USB HID KEYBOARD/USB VCP
Voltage requirement : 5VDC±5%
Current consumption : Max：180mA
Optical Characteristics
Photo sensor : CMOS array sensor
SENSOR RESOLUTION : 640x480 pixels
light source : 5600K white LED
Aim light source : Red Bar LED
Performance Characteristics
Decode angle :
Pitch angle:±55°
Skew angle:±55°
Tilt angle:±180°
Min resolution : 1D:5mil 2D:10mil
Min.PCS value : 15%UPC/EAN 13（13mil）
Field of View : 40°（H）x 29°（V）
Identification :
1D: UPC-A,UPC-E,EAN-8,EAN-13,Code 39,Code 128,Interleaved 2 of 5, Codabar,Code93
2D: PDF417, MicroPDF417, Data Matrix,QR Code,Micro QR, Aztec
Physical Characteristics
Dimensions
Scanner : 95mm×70mm×168mm（L x W x H） Receiver: 55mm x 14mm x 8mm(L*W*H)
Weight
Scanner: 186g Scanner：186g Receiver: 5g received：5g
Environmental Characteristics
Temp : -20°to 60°C / -4° to 140°F((operation) ) -40°-to 80°C /-40° to 176°F(storage)
Humidity : 5 - 95% (operation) ) 5 - 95% (storage)
Shock drop test : 1.5m drop onto concrete surface
Ambient Light : fluorescent light 4000 lx max , direct sun light 80,000 lx max ,white light 4000 lx max
