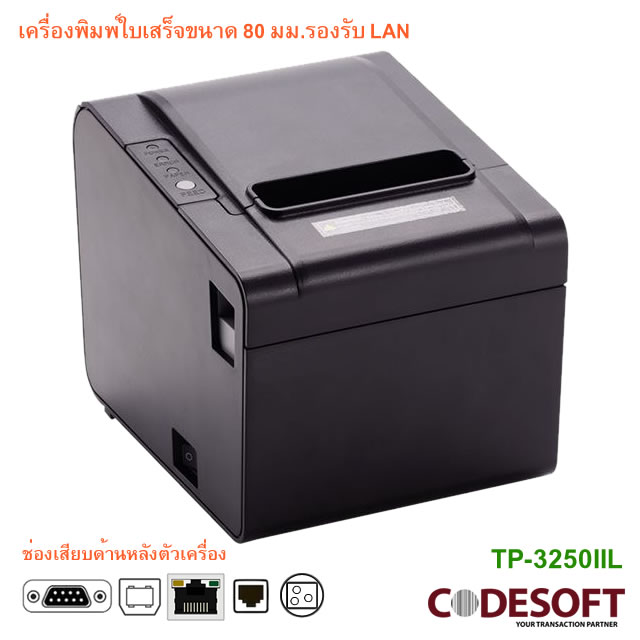

Receipt Printer 80 mm with Auto Cutter Support Lan
เครื่องปริ้นใบเสร็จ 80 มม. รองรับการใช้งานผ่านเครือข่าย
Specification
Printing Method : Thermal Line Printing
Printing Width : 80mm: 72mm / 567dots
Dot Pitch : 567dots / line 512dots / line
Printing Speed : 250mm/sec ( 60 lines / sec )
Number of Columns : 80mm: Front A – 42 columns / 48 columns / Front B – 56 columns / 64 columns / Simplified / Traditional Chinese – 21 columns / 24 columns
Character Size : ANK Character, Front A : 1.5 x 3.0mm ( 12 x 24 dots ) Font B: 1.1 x 2.1mm ( 9 x 17 dots ) Simplified / Traditional Chinese : 3.0 x 3.0mm ( 24 x 24 dots )
Character Table : PC437 / Katakana / PC850 / PC860 / PC863 / PC865 WPC1252 / PC866 / PC852c / PC858 / Latvian / Arabic / PT151, 1251
Line Spacing : 3.75mm;
Paper : 79.5 +/- 0.5mm @ 83mm
Interface : USB + serial + Ethernet
Input Buffer : 256K bytes;
NV user memory : 256K bytes;
Power Supply : DC 24V / 2.5A
Drawer Kick-Out : DC 12-24V / 1A, 2 Drawer
AC Adapter : Input: AC 110V / 220V, 50-60 Hz Output : DC 24V / 2.5A
Weight : 1.30Kg
Reliability : 100km
Driver : Win 7 / 8 / 10
Dimensions : (W*D*H) 145*195*148 mm.
Safety : 3C , CE
Operating : Temperature Temperature: 0-45 Humidity: 10~80%
Storage : Temperature 0 to 60 degree Celsius
Barcode : Types UPC-A/UPC-E/JAN-13/EAN-8/CODABAR/ITF/CODE39/CODE93/CODE128 / QR code
Auto Cutter : Full or Partial
Command : ECS / POS
